CppNoddy::OneD_Hyperbolic_System Class Reference

A class to represent a one dimensional hyperbolic system of equations. More...

#include <OneD_Hyperbolic_System.h>

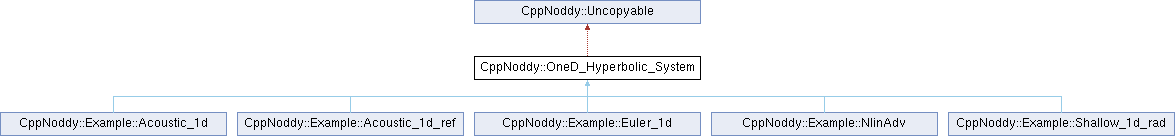

Inheritance diagram for CppNoddy::OneD_Hyperbolic_System:

Public Member Functions
	OneD_Hyperbolic_System (const unsigned &order)
virtual	~OneD_Hyperbolic_System ()
	An empty destructor, virtual since we have virtual methods. More...
virtual void	flux_fn (const double &x, const DenseVector< double > &q, DenseVector< double > &f) const
	A virtual flux function. More...
virtual void	Jac_flux_fn (const double &x, const DenseVector< double > &q, DenseMatrix< double > &J) const
	A virtual function function to define the Jacobian of the flux function. More...
virtual double	max_charac_speed (const DenseVector< double > &q) const
	A virtual method that is used to bound the shock speed and must be implemented by the user. More...
virtual bool_vec	edge_values (const int face_index, const double &x, DenseVector< double > &q, const double &t=0.0) const
	Define the edge boundary conditions. More...
virtual void	source_fn (const double &x, const DenseVector< double > &q, const DenseVector< double > &slope, DenseVector< double > &r) const
unsigned	get_order ()

Protected Attributes
const std::size_t	ORDER_OF_SYSTEM
	The order of the system of equations. More...

Detailed Description

A class to represent a one dimensional hyperbolic system of equations.

Definition at line 13 of file OneD_Hyperbolic_System.h.

Constructor & Destructor Documentation

OneD_Hyperbolic_System()

CppNoddy::OneD_Hyperbolic_System::OneD_Hyperbolic_System ( const unsigned &  order )

inlineexplicit

Parameters

order

The order of the hyperbolic system

Definition at line 20 of file OneD_Hyperbolic_System.h.

                                                           : ORDER_OF_SYSTEM(order) {
    }

~OneD_Hyperbolic_System()

virtual CppNoddy::OneD_Hyperbolic_System::~OneD_Hyperbolic_System ( )

inlinevirtual

An empty destructor, virtual since we have virtual methods.

Definition at line 24 of file OneD_Hyperbolic_System.h.

    {}

Member Function Documentation

edge_values()

virtual bool_vec CppNoddy::OneD_Hyperbolic_System::edge_values ( const int  face_index, const double &  x, DenseVector< double > &  q, const double &  t = 0.0  ) const

inlinevirtual

Define the edge boundary conditions.

Parameters

face_index	An index for the face: -1=left +1=right for OneD_TVDLF_Mesh
x	The position vector along the face
q	The unknowns specified along the face
t	A time for unsteady edge conditions

Reimplemented in CppNoddy::Example::Acoustic_1d_ref, and CppNoddy::Example::NlinAdv.

Definition at line 78 of file OneD_Hyperbolic_System.h.

                                                                                                                             {
      return std::vector<bool>(ORDER_OF_SYSTEM, false);
    }

References ORDER_OF_SYSTEM.

flux_fn()

virtual void CppNoddy::OneD_Hyperbolic_System::flux_fn ( const double &  x, const DenseVector< double > &  q, DenseVector< double > &  f  ) const

inlinevirtual

A virtual flux function.

Parameters

x	The spatial coordinate
q	The unknowns
f	The flux function

Reimplemented in CppNoddy::Example::Acoustic_1d, CppNoddy::Example::Acoustic_1d_ref, CppNoddy::Example::NlinAdv, CppNoddy::Example::Shallow_1d_rad, and CppNoddy::Example::Euler_1d.

Definition at line 31 of file OneD_Hyperbolic_System.h.

                                                                                                      {
      std::string problem;
      problem = "The Hyperbolic_Conservative_System::flux_fn method has not been implemented.\n";
      problem += "You have to implement this method to define the system.\n";
      throw ExceptionRuntime(problem);
    }

Referenced by Jac_flux_fn().

get_order()

unsigned CppNoddy::OneD_Hyperbolic_System::get_order ( )

inline

Definition at line 85 of file OneD_Hyperbolic_System.h.

                         {
      return ORDER_OF_SYSTEM;
    }

References ORDER_OF_SYSTEM.

Jac_flux_fn()

virtual void CppNoddy::OneD_Hyperbolic_System::Jac_flux_fn ( const double &  x, const DenseVector< double > &  q, DenseMatrix< double > &  J  ) const

inlinevirtual

A virtual function function to define the Jacobian of the flux function.

The default method uses first-order finite differencing to compute the Jacobian if not otherwise specified by the user.

Parameters

x	The position
q	The unknowns
J	The Jacobian of the flux function

first order differencing is the default unless overloaded

Definition at line 45 of file OneD_Hyperbolic_System.h.

                                                                                                          {
      /// first order differencing is the default unless overloaded
      double delta(1.e-8);
      DenseVector<double> state(q);
      DenseVector<double> temp1(ORDER_OF_SYSTEM, 0.0);
      DenseVector<double> temp2(ORDER_OF_SYSTEM, 0.0);
      flux_fn(x, q, temp1);
      // default is to FD the Jacobian
      for(std::size_t i = 0; i < ORDER_OF_SYSTEM; ++i) {
        state[ i ] += delta;
        flux_fn(x, state, temp2);
        state[ i ] -= delta;
        J.set_col(i, (temp2 - temp1) / delta);
      }
    }

References flux_fn(), ORDER_OF_SYSTEM, and CppNoddy::DenseMatrix< _Type >::set_col().

max_charac_speed()

virtual double CppNoddy::OneD_Hyperbolic_System::max_charac_speed ( const DenseVector< double > &  q ) const

inlinevirtual

A virtual method that is used to bound the shock speed and must be implemented by the user.

Parameters

q	The unknowns

Returns

A bound on the maximum wave speed

Reimplemented in CppNoddy::Example::Acoustic_1d, CppNoddy::Example::Acoustic_1d_ref, CppNoddy::Example::NlinAdv, CppNoddy::Example::Shallow_1d_rad, and CppNoddy::Example::Euler_1d.

Definition at line 65 of file OneD_Hyperbolic_System.h.

                                                                        {
      std::string problem;
      problem = "The Hyperbolic_Conservative_System::max_shock_speed method has not\n";
      problem += "been implemented. You have to implement this method to define the system.\n";
      throw ExceptionRuntime(problem);
    }

source_fn()

virtual void CppNoddy::OneD_Hyperbolic_System::source_fn ( const double &  x, const DenseVector< double > &  q, const DenseVector< double > &  slope, DenseVector< double > &  r  ) const

inlinevirtual

Reimplemented in CppNoddy::Example::Shallow_1d_rad.

Definition at line 82 of file OneD_Hyperbolic_System.h.

                                                                                                                                          {
    }

Member Data Documentation

ORDER_OF_SYSTEM

const std::size_t CppNoddy::OneD_Hyperbolic_System::ORDER_OF_SYSTEM

protected

The order of the system of equations.

Definition at line 92 of file OneD_Hyperbolic_System.h.

Referenced by edge_values(), get_order(), and Jac_flux_fn().

---

The documentation for this class was generated from the following file:

• include/OneD_Hyperbolic_System.h
